Aerospace Testing Facilities in India

Aerospace Testing Facilities available in India



  Title of the Aerospace Test
Acceleration Test

  Name of the Organisation
DRDO

  Name of theLab
Research Centre Imarat - RCI

  Place of the Lab
Hyderabad

  Category of Aerospace Test Dynamics and Vibration

  Sub-category of Aerospace Test NA

  Year of Establisment NA

  Test Applications
To simulate both dynamic and climatic environments for qualifying the productionised airborne systems

  Test Special Features
Parameters:

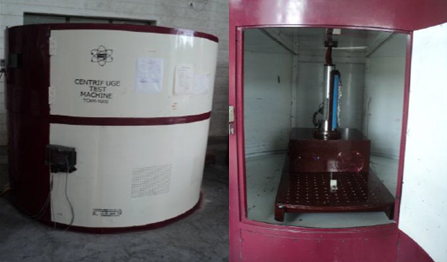

Machines used -  Centrifuge  (Model – TCAM-10000)
Nominal radius  - 600 mm
Platform Radius Range  - 350 to 850 mm
Rotating Platform Size - 550×550 (mm)
Max. Specimen Size  - 500×500×500 (mm)
Maximum ‘g’  - 1 to 100 ‘g’ (TARANG)
Maximum Specimen Weight  -  Up to 100 Kg (TCAM-10000)
Speed Range & Resolution  - 38 to 387 RPM & 1 RPM
Slip Rings (TCAM-10000)  -   5 Amps – 40 No’s, 10 Amps – 20 No’s (No ‘RF’ Facility)


  Other Test Information
Drive  - Permanent Magnet Brushless Servo Motor
Brakes  - Mechanical + Eddy Current Brakes


  Contact Person / Institution
The Director
Research Centre Imarat (RCI)
Defence Research and Development Organization DRDO
Ministry of Defence
Vigyanakancha
Hyderabad-500 069
Contact No.+91-40-24306001, 27567419
Fax No.+91-40-24306086
E-mail : director@rci.drdo.in
Website:   http://rcilab.in/SitePages/Home.aspx
