Aerospace Testing Facilities in India

Aerospace Testing Facilities available in India



  Title of the Aerospace Test
Acceleration Test

  Name of the Organisation
DRDO

  Name of theLab
Research Centre Imarat - RCI

  Place of the Lab
Hyderabad

  Category of Aerospace Test Dynamics and Vibration

  Sub-category of Aerospace Test NA

  Year of Establisment NA

  Test Applications
To simulate both dynamic and climatic environments for qualifying the productionised airborne systems

  Test Special Features
Parameters:

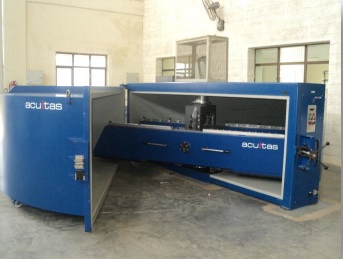

Machines used -  Centrifuge  (Model – AC-12-15000-02 )
Nominal radius  - 1250 mm
Platform Radius Range  - 750 to 1750 mm
Capacity – 15000 g-kg
Payload (Peak) - 150 kg (Nominal), 200 kg (Max)
Payload Size - 1000×1000×1000 (mm)
Maximum ‘g’  - 1 to 100 ‘g’ (TARANG)
Pneumatic Rotary Joint ¬¬¬- Clear port size 8.7mm diameter, 50 Bar max. pressure
Hydraulic Rotary Joint - Dual lines, Nominal pressure (320 Bar) to Peak pressure (525 Bar)
Speed Range & Resol

  Other Test Information
Drive  - PWM Amplifier with Digital Rate Controller

  Contact Person / Institution
The Director
Research Centre Imarat (RCI)
Defence Research and Development Organization DRDO
Ministry of Defence
Vigyanakancha
Hyderabad-500 069
Contact No.+91-40-24306001, 27567419
Fax No.+91-40-24306086
E-mail : director@rci.drdo.in
Website:   http://rcilab.in/SitePages/Home.aspx
